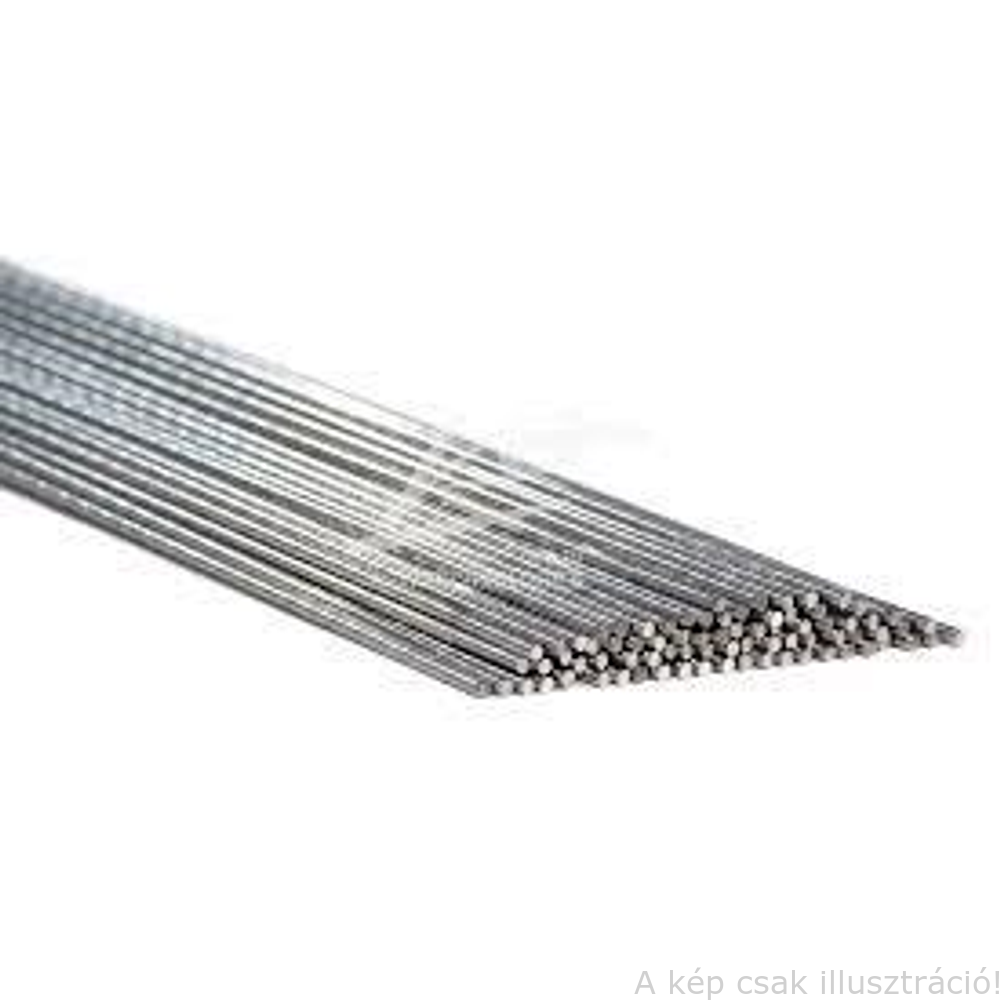

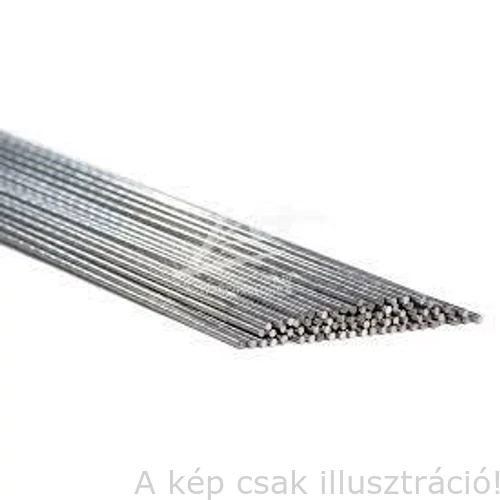

NiCu30Mn3Ti
(SELECTARC CUNI30)
Datasheet - Welding wires/rods for Nickel alloys
Typical composition in %
Ni ≥ 62
Fe 0,5 - 2,5
C ≤ 0,15
Mn 2,0 - 4,0
Si ≤ 1,0
Cu 28 - 34
Ti 1,5 - 3,5
Al ≤ 1,0
Nb ≤ 0,5
S ≤ 0,015
P ≤ 0,02
Classification
EN ISO 18274 S Ni 4060 (NiCu30Mn3Ti)
DIN 1736 SG - NiCu30MnTi
Material No. 2.4377
AWS A 5.14 ER NiCu-7
BS 2901 NA 33
Application
Solid Nickel copper welding wire electrode suitable for joinig nickel copper alloys and copper to steel, claddings and buffer layers.
Base materials
2.4360 NiCu 30 Fe 2.4361 LC-NiCu 30 Fe 2.4365 G-NiCu Nb
2.4375 NiCu 30 Al
Physical properties (Approx. values) at 20° C
Tensile strength Rm [MPa] 550
Yield strength Rp0,2 [MPa] 250
Elongation A200 [%] 35
Hardness [HV] 135
Specific electr. Resistance [ Ohm mm²/m] 0,62
Density [g/cm³] 8,5
Melting point [° C] 1.330
Shielding gas
MIG: Ar+1-3% O2, Ar+1-3% CO2, Ar+He+O2, Ar+He+CO2, Ar+He+CO2+H2
WIG: Ar, He, Ar+He, Ar+2-5% H2
Polarity
MIG =+, TIG =-
Welding position
PA, PB, PC, PD, PE, PF
PA
PA
PB
PC
PC
PD
PE
PE
PF
PF
Dimensions
MIG-wires [mm] 1,0; 1,2; 1,6
TIG-rods [mm] 1,6; 2,0; 2,4
Packaging
Spools Packaging units
BS 300 / 15 kg 25 spools = 375 kg (Pallet)
