Leírás
Ausztenites huzal MIG hegesztésre. Alkalmas korrózióálló 18/8 CrNi- 304 L tipusú és Nb vagy Ti-l stabilizált(347, 321) acélokhoz,
a vegy-, gyógyszer-, cellulóziparban eszközök, tartályok, alkatrészek hegesztésére 400°C üzemi hőmérsékletig.
A varratfém oxidációnak ellenáll 800C-ig, alakítható -196C-ig.
A magasabb Si tartalom jobb ívstabilitást eredményez.

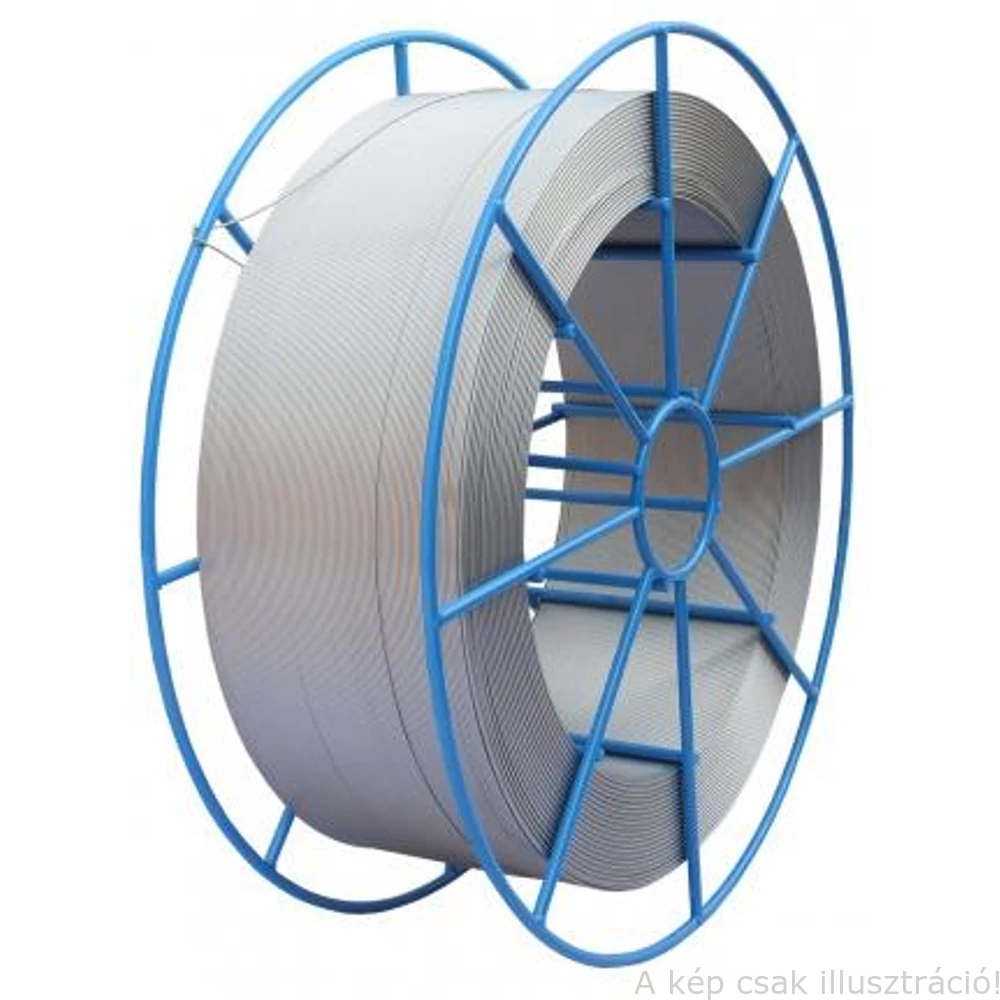

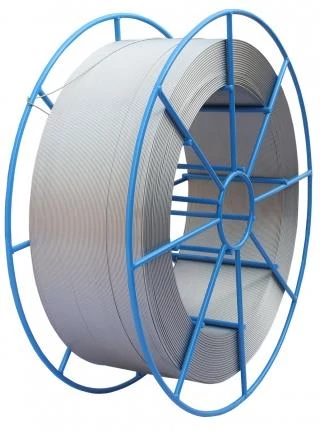

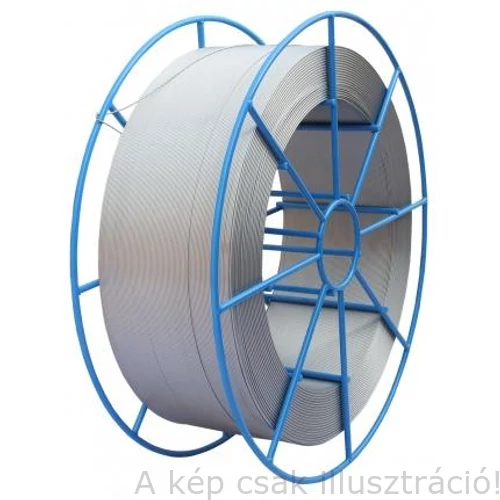

MIG Welding Wire Chrome-Nickel 308LSi 1.2x15kg Bohler
Item internal code: 85513
Description:
GMAW solid wire designed for first class welding, wetting and feeding characteristics and excellent weld metal CVN values down to –196 °C. Resistance to intergranular corrosion up to +350 °C.
Classifications
EN ISO 14343-A
G 19 9 L Si
EN ISO 14343-B
SS308LSi
AWS A5.9
ER308LSi
Base materials
1.4306 X2CrNi19-11;
1.4301 X5CrNi19-10;
1.4311 X2CrNiN18-10;
1.4312 GX10CrNi18-8;
1.4541 X6CrNiTi18-10;
1.4546 X5CrNiNb18-10;
1.4550 X6CrNiNb18-10;
AlSl 304, 304L, 304LN, 302, 321,347; ASTM A157 Gr. C9, A320 Gr. B8C or D
Typical analysis of solid wire (wt.-%)
C
Si
Mn
Cr
Ni
≤0.02
0.8
1.7
20.0
10.2
Mechanical properties of all-weld metal
Yield strength [MPa]
Tensile strength [MPa]
Elongation A (L0=5d0) [%]
Impact work at +20°C
ISO-V KV [J]
Impact work at -196°C
ISO-V KV [J]
350 (≥320)
540 (≥510)
38 (≥35)
70
≥32
Operating data
Pozycje spawania 2
Polarity
Shielding gas
Diameter
Spool
DC(+)
Argon + max. 2,5% CO2
1,2mm
15kg
Approvals:
TÜV (12936.), DB (43.132.38), CE
Böhler 308LSi is primarily intended for welding the low carbon 18% Cr / 10% Ni type 304 L
austenitic stainless steels. Suitable also for welding normal carbon grade 304 and Nb or Ti stabilised
steels (347, 321) provided service temperatures are below 400°C. The higher silicon content gives
better arc stability and weld metal flow which improves bead appearance, particularly when dip
transfer welding.
