Our semi-automatic multifunctional equipment, developed by Tridragon Ltd., is now available.
|
|
|
The DFJ-1000 and DFJ-2000 linear, radial welding and cutting machines are available in BASIC, PRO and EXPERT versions.
| Model versions: | DFJ-1000 BASIC |
DFJ-1000 PRO |
DFJ-1000 EXPERT |
DFJ-2000 BASIC |
DFJ-2000 PRO |
DFJ-2000 EXPERT |
|---|---|---|---|---|---|---|
| Key features and characteristics | ||||||
| 1000 mm cutting/welding working length | X | X | X | |||
| 2000 mm cutting/welding working length | X | X | X | |||
| Analog control with digital speed display | X | X | ||||
| For metallic materials, plasma cutter/welder, manual laser cutter-laser welder-laser cleaning gun, TIG and MIG welding, drawing-marking (scratcher / alcohol and other paint markers) | X | X | X | X | X | X |
| For non-metallic materials (e.g. plastics, wood...) suitable for drawing, engraving, with a mini milling machine: engraving, milling, cutting... works | X | X | X | X | X | X |
| Manual start point and end point setting | X | X | X | X | X | X |
| Linear welding/cutting | X | X | X | X | X | X |
| Stepless cutting/welding speed adjustment | X | X | X | X | X | X |
| Test run function | X | X | X | X | X | X |
| Manual movement direction change | X | X | X | X | X | X |
| Corrosion-resistant and lightweight aluminum machine frame | X | X | X | X | X | X |
| Laser position marker | X | X | X | X | X | X |
| Manual cutting/welding length/distance | X | X | X | X | X | X |
| Manual cutting/welding contour length/circle | X | X | X | X | X | X |
| Automatic workpiece surface tracking with mechanical surface tracking system | X | X | X | X | ||
| Adjustable cutting/welding angle, e.g. for bevel cutting, chamfering, fillet welding, cutting/welding on the side of the workpiece | X | X | X | X | ||
| Circular cutting/welding, drilling, rounding, circular arc making function (diameter 1-600mm) | X | X | X | X | ||
| Round form heat exchanger, pipe flange, base plate welding... | X | X | X | X | ||
| SIEMENS control and control panel with digital display | X | X | X | X | ||
| Automatic movement direction change and return to the starting point | X | X | X | X | ||
| Rapid traverse function for positioning | X | X | X | X | ||
| Circular cutting/welding, drilling, rounding, circular arc making function (diameter 1-1200mm) | X | X | ||||
| Slot-out functions for precise circular cutting, drilling,line welding | X | X | ||||
| Infinitely adjustable oscillating movement for linear welding or wave/sawtooth cutting | X | X | ||||
| Infinitely adjustable seam width for linear seams (up to 50mm) | X | X | ||||
| Automatic workpiece surface tracking with arc monitoring system for welding and plasma cutting | X | X | ||||
| *NC CONTROL | X | X | ||||
| Automatic multi-row seam production according to pre-programmed settings | X | X | ||||
| Adjustable automatic cutting/welding length/distance | X | X | ||||
| Listprice (EUR)** | 2 158 | 4 065 | 5 317 | 2 951 | 4 931 | 6 257 |
** The prices do not include VAT. The prices are valid EXW our Nagytarcsa location, with the presentation of the appropriate welding or plasma cutting equipment under operating conditions within a maximum of 2 hours. Within a 50 km radius of Tridragon Kft., we deliver the equipment free of charge, set it up and train you on how to use it within a maximum of 2 hours under operating conditions.
Mains power requirement: 230V 50Hz (5A max.)
* Optionally, also available in a battery-operated version. With battery unit that can be operated independently of the mains, providing ~6 hours of operation time and built-in charger * + 500 EUR
* OPTIONAL, WELDING/PLASMA CUTTING table (1200 x 800 mm) + integration * + 500 EUR

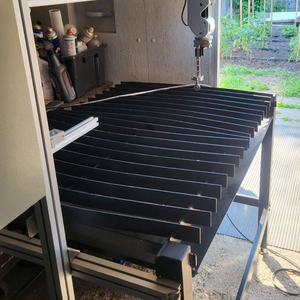

All versions include, depending on the size, one or two DIY 1200 x 800 mm GPPH Polish-made welding and assembly tables or a lattice plasma cutting table. The prices do not include the technology, i.e. the arc or laser welder, plasma arc or laser cutting, cleaning equipment and its cables and accessories. The end user must select the welding, cutting or cleaning power source with the appropriate work cable and earth cable.
After connecting the electrical power and the welding/cutting device required for the chosen technology, work can begin with the set parameters.
